Multi-Axis Laser Beam Welding (LBW)
Multi-Axis Laser Cutting and Welding Center
Superior Joining Technologies, Inc. (SJTI) provides multi-axis laser beam welding to meet the tight tolerances required by aerospace and other industries. We also work with three-dimensional parts that require drilling & cutting on difficultly curved surfaces or at extreme angles for fabricators, metal spinners, and hydro formers. SJTI utilizes the Trumpf 5000W TruLaser Cell 7040. With a working range of 13 feet x 5 feet Y x 30 inch Z and maximum simultaneous axis speeds of 98 inches per second, it is the most advanced system of its kind in the Midwest.
With the ability to construct a cutting and welding program from a CAD model, the prep time is greatly reduced, and the use of its integrated rotary axis makes the processing of tubular components highly efficient.
To download a datasheet on our 5-axis laser cutting and welding capabilities, please click here. Contact the team at Superior Joining Technologies for more information regarding our multi-axis laser welding solutions.

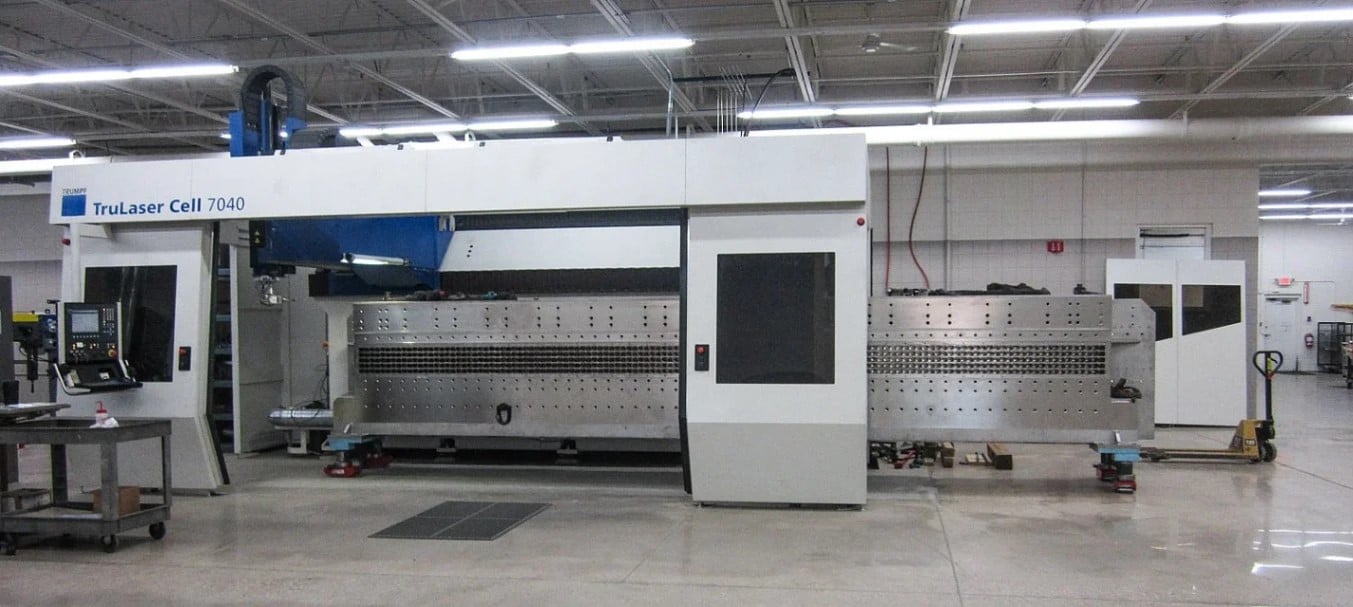

Trumpf TruLaser Cell 7040 5000W 5-Axis 3D Laser
Machine Specifications
Working Range
Workable Clamping Area
Maximum Material Thickness as a General Rule for Cutting
|
Maximum Axes Speeds
Maximum Accelerations
Accuracy4Maximum Repeatability
Maximum Positioning Accuracy
Control and Laser
|
3 Reduced accuracy/dynamics with fully extended Z = 750 mm axis for cutting 2D parts. It is recommended to use the 2D cutting box to cut 2D parts.
4 Pure mechanical accuracy without software compensation, according to VDI 3441 across the entire working range. The accuracy achievable on the work place depends, amongst other things, on the part geometry, it’s pre-treatment, material and on its position in the work area.
